CH4X4 Universal 6 Gang LED Touch Screen Panel is all in one design, no need to buy extra parts. Touch Screen Panel + Circuit Control Box + Cable + Self-Adhesive Label Stickers + Wiring Harness + Screw Sets.
The switch panel can control 6 kinds of led light bar or accessories at the same time under 12-24 Volts. Adopt capacitive sensing technology with blue indicator light display, the CH4X4 switch panel has the features of high sensitivity, stability and strong anti-interference ability.

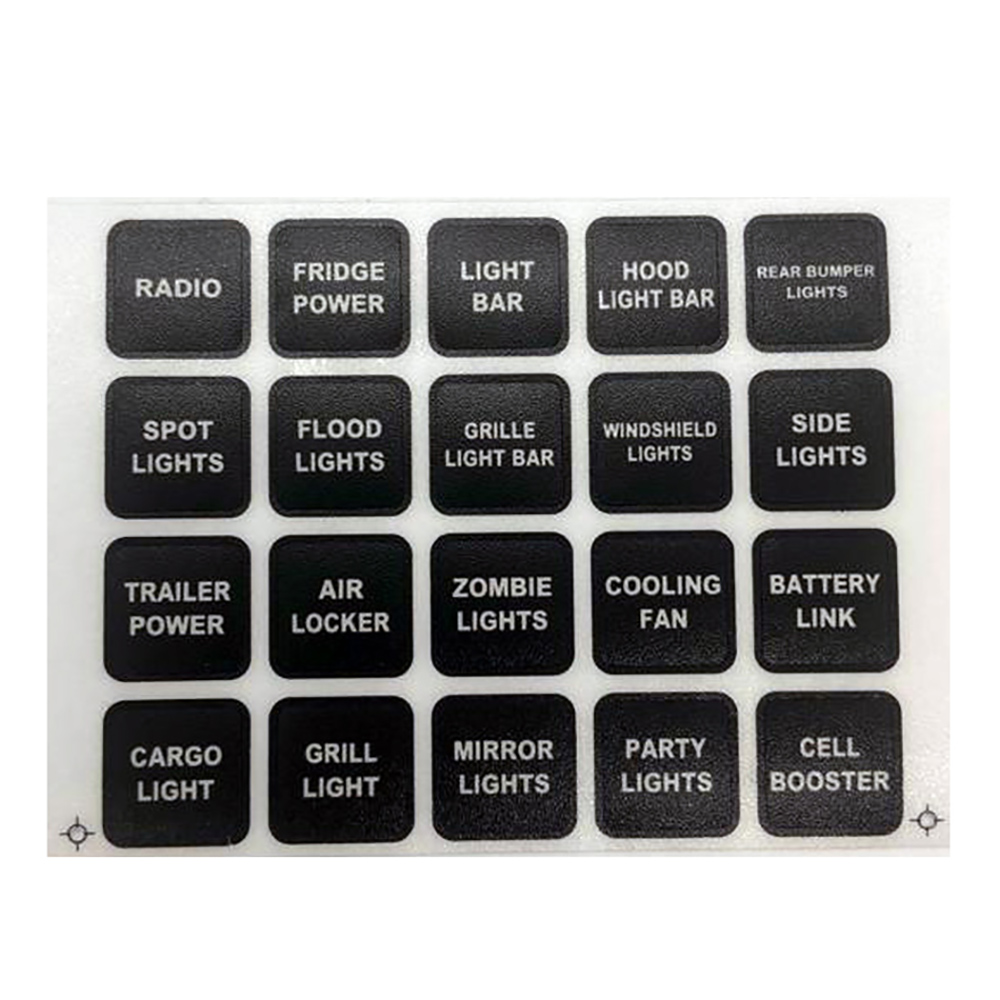

Our 60 exclusive custom Self-Adhesive Label Stickers included allow you to use the panel with Off Road or Marine accessories, giving them greater possibilities and uses in different vehicles or vessels.
Easy installation: Plug & play wiring harness. Labels attach easily, space saving and time saving.
Application: Perfectly suitable for off road, Jeeps, powersports, marine boats, yacht, trailers, bus, RV, etc.
Installation Guide:
- Cut one hole on the dashboard.
- Connect CH4X4 touch screen panel with control box by using the provided transmission cable.
- Connect the device or application positive to the pin.
Package Included:
- 1 x CH4X4 6 gang touch screen panel
- 1 x Sealed control box
- 1 x 15-PIN transmission cable
- 1 x 3M double sided tape
- 60 x label stickers
- 2 x Input wire
- 6 x Output wire
- 2 x M4*12 Stainless steel screws
- 4 x M4*45 Stainless steel screws
Specifications:
- Input Voltage: DC 12V-24V
- Output: DC 12V 10A / 24V 10A
- Waterproof rating: IP67
- Reverse polarity protection
- Overload protection
- Touch screen panel dimensions: 3.15” x 3.94” x 0.39” (80x100x10mm)
- Sealed control box dimensions: 3.35” x 5.31” x 1.18” (85x135x30mm)
- Hole Size: 1.97” X 0.79” (50x20mm)
