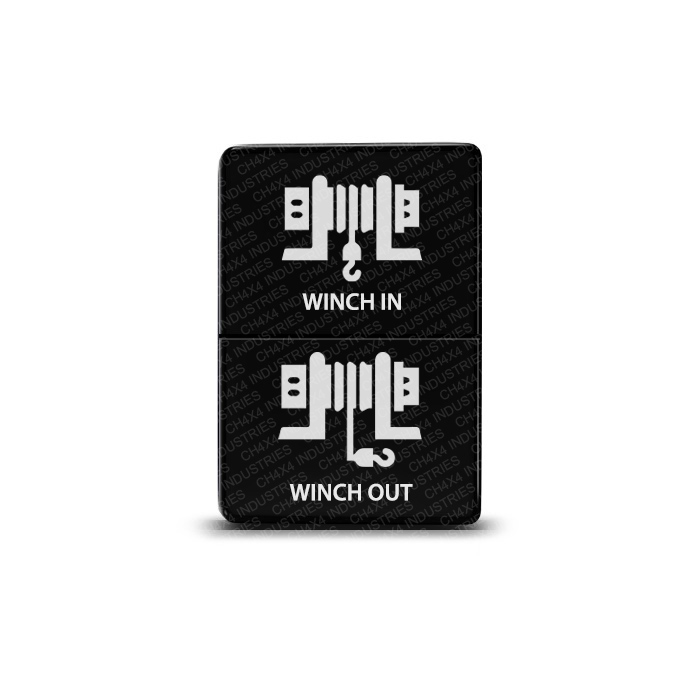

CH4x4 Momentary Small Dual Push Switch for Toyota – Winch IN/OUT Symbol 2 is perfect when you have limited space or wish to maximize your existing OEM switch locations, this dual switch doubles the number of switches you can install without the need to damage your vehicles dash by cutting additional holes giving you a clean and original style look, each OEM switch has a face surface size of 1.28″ x 0.87″ (32.5 mm x 22 mm).
These switches are made out of heavy-duty ABS plastic that will ensure years of service and come in a mate black surface color, the same color as the OEM Switches, All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
These Switches are an aftermarket switch that locks into your existing panel super easy to install in less than 10 min’s.
• The product is manufactured to fit in the OEM space available in your car or truck, simple to install
• Single powered input feeding two independently switched outputs
• Dual colored illumination powered via existing dash light circuit
• Blue/Amber illumination when the switch is in the OFF position and Green/White illumination when the switch is ON
• Laser etched Legend
• Rated at 3 Amp 12V
• Wiring diagram and Harness supplied with switch
The CH4X4 Dual Push Switches for Toyota are 2 electronic switches rated at 3 amp on each side. Therefore in ALL cases, you will NEED TO wire each side through a fused relay because they are two separate circuits (2 switches in one).
• 1 Momentary Small Dual Push Switch
• 1 Connector with cable for easy installation
FITS THESE VEHICLES:
• Toyota Tacoma 2012-ON (Center Console ONLY)
• Toyota Tundra 2008-ON
• Toyota 4Runner 2010-ON
• Toyota Land Cruiser Prado 150 Series 2010-2014
• Toyota Land Cruiser 200 Series 2008-2013
• Toyota Sequoia 2008-ON
• Toyota Corolla 2006-2013
• Toyota Highlander 2008-ON
• Toyota RAV4 2008-2012
• Toyota Yaris 2008
• Toyota Camry 2011-2014
